IOT FOR LAUNDRIES: ENHANCED TEXTILE TRACKING AND VISIBILITY MAXIMIZE VALUE, MINIMIZE WASTE
Gain real-time visibility into each textile item throughout its lifecycle. Track its readiness for washing, ingress and egress from your laundry facility, delivery to your customers, and every stage in between.
About Textile RFID tags

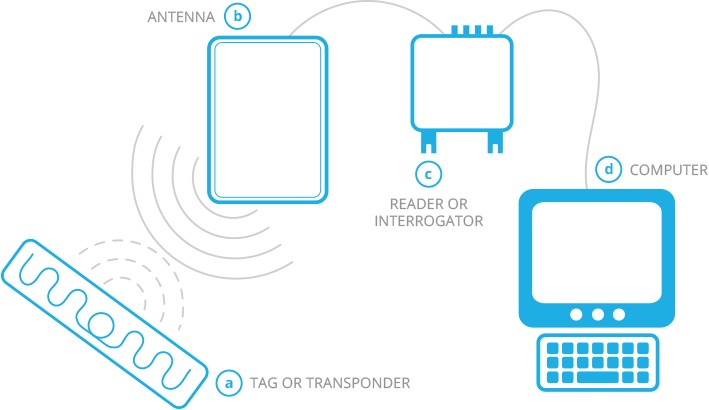

RFID (Radio-Frequency Identification) utilizes electromagnetic fields to transmit data via tiny tags affixed to textiles, carrying electronic stored information, enabling automatic identification and tracking of textiles. An RFID system consists of tags (or transponders) bearing data and a reader system (which reads that data and sends it to a computer system).
Since tags contain a unique ID associated with specific textile specifications, RFID enables laundry facilities to track and control textiles and assets throughout their entire lifecycle and at any point in the industrial process. This allows laundry facilities to know how many textiles are in circulation, which ones have been processed, their exact locations, durations, and reasons.
Following industries and businesses can benefit from Textile RFID tags
The benefit of Textile RFID tags
Once unleashed, a dedicated RFID Internet of Things (IoT) solution will start to increase fundamentally any industrial’s bottom-line.
Optimise item utilisation rate: wash cycles and histories per item can become visible automatically, reducing the need for manual quality checks and unnecessary disposal of items at predetermined intervals.
Reduce stock per customer: you will know where all of your items are and have full active and passive stock visibility per customer, which will enable you to reduce redundant stocks.
Track personalised items: personalised textiles become traceable at the click of a button because RFID technology can give any item a unique, digital identity.
Know when & where items are lost: you will be able to pinpoint item location more precisely for in-house retrieval, or you will have the visibility data to bill customers for lost items.
Drive when necessary: you will know how many items are ready for washing at your customer, and when a pick-up makes sense to deliver on customer requirements.
Create new services: new business models become possible, such as laundry as a service, workwear as a service, or pricing per user.
Increase customer value: offer textile lending stations at your customers’ premises to offer the right items at the right time, at the right place.
Offer enhanced textile compliance: your RFID tags can alert customer employees to switch gear before entering a white room, enhanced hygiene, gluten-free, non-linting or other areas with very specific textile requirements.
The industry business application case of EStar RFID Textile Tags
EStar Technology’s RFID Textile tags find extensive application across various industries and sectors where efficient laundry and textile management is essential. From hospitality and healthcare to manufacturing and logistics, RFID technology revolutionizes traditional laundry processes, enabling organizations to improve efficiency, enhance traceability, and optimize resource utilization. Below are detailed descriptions of some key application scenarios where EStar Technology’s RFID Textile tags are deployed:
In conclusion, EStar Technology’s RFID Textile tags offer a versatile and reliable solution for optimizing laundry and textile management processes across a wide range of industries and applications. By leveraging RFID technology, organizations can improve efficiency, enhance traceability, and deliver superior customer experiences while reducing costs and improving operational performance. From hospitality and healthcare to industrial laundry services and retail apparel tracking, RFID-enabled solutions revolutionize traditional laundry operations and unlock new opportunities for innovation and growth.
Physical Parameters |
|
Color | White |
Size | 70*15mm、75*11mm, & customizable |
Protection Level | IP67 |
Material | Textiles |
Customization Support | Supports barcode/serial number/QR code printing |
Technical Parameters |
|
Operating Frequency | 902 ~ 928MHz |
Reading Distance | 0~6m, related to the performance of reading devices. |
Communication Protocol | EPC Class1 Gen2 ISO18000-6C |
Chip Type | IMPINJ MR6-P/M730;NXP U9 etc. |
Chip Memory | USER Area: 512bits; EPC Area: 96bits |
Read/Write Limit | 100,000 times |
Installation Method | Heat press at 215℃ for 15-20 seconds or install with sewing. |
Operating Temperature | -30℃ ~ 90℃ |
Pressure Threshold | 60 bars |
Chemical Properties | Able to withstand all chemicals in normal industrial washing processes. |
Short-term temperature resistance | Washing:90℃/15 minutes, Ironer:190℃/10 seconds,Pre–dryin:180℃ /20 minutes,Sterilization:135℃/20 minutes,Pressure:60 bars |
Storage Humidity | <95% |
Physical Parameters |
|
Color | Customizable |
Size | 15mm diameter; Customizable |
Protection Level | IP67 |
Material | PVC outer cast |
Customization Support | Supports serial number/UID laser printing |
Technical Parameters |
|
Operating Frequency | 13.56 MHz |
Reading Distance | 0-20CM |
Interface protocol | ISO14443A /ISO15693 |
Chip Type | FM11RF08; NXPICODE SLIX |
Chip memory | ROM:256Kbit,RAM:2048bit,EEPROM:64Kbit |
Read/Write Limit | 100,000 times |
Installation Method | Magnetite Adsorption/Embedding |
Operating Temperature | -20℃ ~ 85℃ |
Storage Temperature | -40℃ ~ 100℃ |
Q1. Is the tag waterproof?
A: Yes, our RFID Textile tags are waterproof and can operate stably in wet environments without being affected by water
Q2. Does the tag support multiple writes of data?
A: Yes, the tag’s built-in memory supports multiple writes of data, allowing customers to update information on the tag as needed.
Q3. What is the lifespan of the tag ?
A: The lifespan of the tag depends on the usage environment and frequency, but typically it can last for several years or even longer, ensuring long-term performance and reliability.
Q4. What is the temperature range the tag can withstand?
A: Our RFID Textile tags can withstand temperatures ranging from -40°C to +120°C, making them suitable for use in various extreme environments.
Q5. Can the tag be used in a microwave oven ?
A: It is not recommended to put the tag in a microwave oven, as the microwave may adversely affect the electronic components inside the tag, leading to performance degradation or damage.
Q6. How is the security of the tag ensured ?
A: Our tags have advanced security features including password protection and data encryption, ensuring the security and integrity of data and preventing information from being tampered with or leaked.
Q7. Can the size and shape of the tag be customized ?
A: Yes, we can customize the size and shape of the tag according to customer requirements to meet the needs of different application scenarios.
Q8. What should be done if the tag is damaged ?
A: If the tag is damaged, it is recommended to replace it with a new tag immediately and ensure proper installation to ensure the normal operation of the system and the accuracy of the data.
Q9. How long is the lead time for customized products ?
A: Based on our MOQ 1000pcs, the delivery time is as follows:– RFID card is 7-9 working days after payment– RFID wristband is 10-12 working days after payment– RFID Tag is 8-10 working days after payment. If you need faster or more accurate delivery, please contact our salesman, we provide expedited service.
Q10. I don’t know the chip model I need, but I want to customize the same product, what should I do ?
A:– You can send samples to us for testing, and we will produce according to your samples to ensure consistent product function.– Use a professional card reader to test the chip, or give our salesman a picture and we will send you a sample after judgment.– If you need any help, feel free contact us via online chat

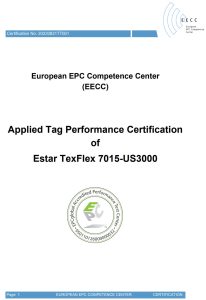

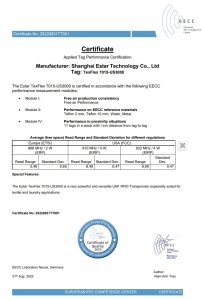

Estar TexFlex 7015-US3000
504-PPSd16
Payment must be made within 30 days of invoice date.
T/T,Paypal,Escrow,Western Union,trade assurance etc.
offer both standard and expedited shipping options. support FOB, CIF, DDP.
We accept returns within 14 days of purchase with a valid receipt. logistics fee will be chargable
MOQ: 150 PCS
Production location: Shanghai/Nantong, China
Shipment location: shanghai
